描述
●帶指示燈開關
●單刀單擲
●額定電壓電流
13A 6(6)A 250V~,T105/55
6A 250Vac T85/55
6A 250Vac,10A 125VVac
●獲得認證:ULcUL,TUV,CQC
●溫度限:85℃ Max.
●耐高壓:2500Vac
●絕緣電阻:＞100MΩ
●壽命:10000cycles
●接觸電阻:＜ 50mΩ
●Resistance to tracking(PTI):175V
●適用器具類別:Ⅱ
●防護級別:IPOO

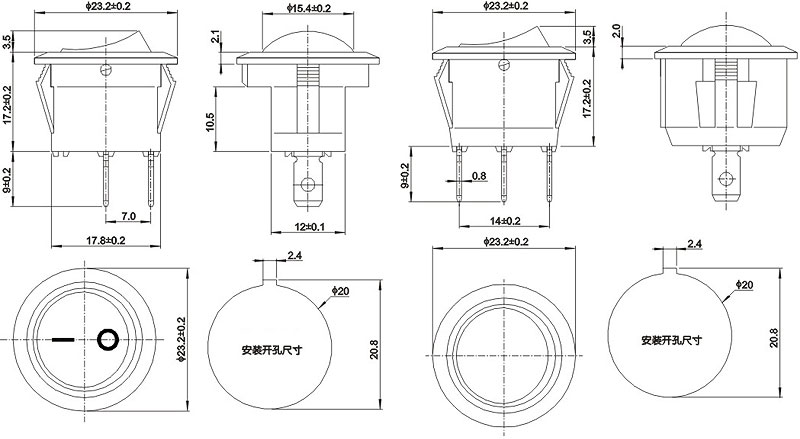

尺寸圖

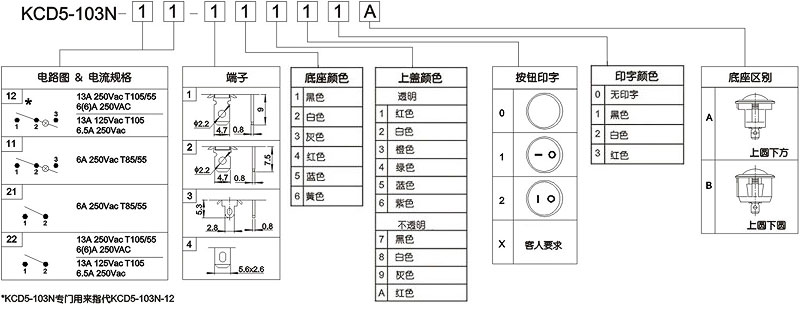

標識訂貨
